H1 " BADGER"

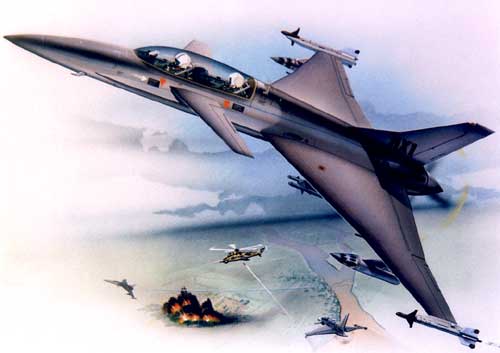

The H1 "Badger", by Hamilton Aerospace, is an all-composite, twin-engine, cranked arrow wing - canard, tactical aircraft. The primary mission is close air-to-ground troop support, forward air control, and tactical scout - reconnaissance, and long range, over water patrol.

One of the major design goals of the H1 "Badger" is a high trust-to-weight ratio. This all-composite airframe will be mated with twin Williams WJ33, or P&W615 engines. A high acceleration rate and high rate of climb will result. This will result in a higher survivability against small arms and short-range shoulder-launched weapons.

The H1 "Badger" is an offensive weapon designed for attack. The "Badger" is a heavily armed, light machine gun platform. Additional weapon systems can be provided. Multi-hard points are provided on the airframe capable of carrying a various array of weapons, as well as E.C.M. pods.

Hamilton AeroSpace
Specifications

H1 "Badger"

WEIGHT
Gross Weight
8,000 lbs
Empty Weight
3,500 lbs
Fuel
2,500 lbs
Weapons
2,000 lbs

SPECIFICATIONS
Length
35 ft.
Wing Span
30 ft.
Wing Area
200 sq. ft.
Wing Loading
40 lbs. per sq. ft. at gross wt.
Speed Vmax
.92 mach
    Speed Vh (armed)
425 kts.
Ceiling
40,000 ft.
Endurance
4+ hrs.
Range
Clean - 2000 Miles
Ranged
Armed - 1,600 Miles
Engines
    2 Williams FJ33

 2 P&W 615


MISSION
  PRIMARY: CLOSE AIR-TO-GROUND TROOP SUPPORT
  LONG-RANGE PATROL
FORWARD AIR CONTROL
TACTICAL SCOUT - RECONNAISSANCE

COCKPIT
  SINGLE PLACE - DUAL PLACE
  ZERO - ZERO EJECTION SYSTEM
  UNRESTRICTED SIDE, FORWARD, AND DOWNWARD VISIBILITY
  ALL-WEATHER CAPABILITY

FLYING QUALITIES
  RESISTANT TO STALL AND SPIN PER USAF MIL- S-83691 LEVEL ONE FLYING
 QUALITIES PER MIL-F-8785
  600 FT. TURN RADIUS
  90 BANK IN LESS THAN 2 SECONDS
  COMBAT FLIGHT WINDOW 130 KTS TO 400 KTS

ARMAMENT
  MISSILES ON TWO 300 LB. WING TIP HARD POINTS
  MINI-GUN ONE CENTER LINE MOUNT, OR TWO WING HARD POINTS
ONE 2000 LB. CENTERLINE HARD POINT
TWO .50 CAL. WING ROOT MOUNTED MACHINE GUN WITH 2,000 RDS

SIGNATURE
  MAXIMUM USE OF COMPOSITES (LOW RADAR SIGNATURE)
  AIR DUCTING TO REDUCE ENGINE C/S SIGNATURE
  HIGHLY MANEUVERABLE
  ONE 2000 LB. CENTER HARDPOINT

DEPLOYABILITY
  2,500 MILE FERRY RANGE
  C-130 DEPLOYABILITY, ONE HOUR REASSEMBLY TIME
  AIRCRAFT CARRIER CAPABILITY
